Dimensions (unfolded)
Dimensions (folded)
Product model number
DDHBC08NEB
Max. speed
20km/h (Max speed for each mode: Pedestrian mode: 5km/h; D: 15km/h; S: 20km/h)
General range
20km
Max. climbing angle
10°
Braking
E-ABS and disc brake
Rated power
250W
Max. power
500W

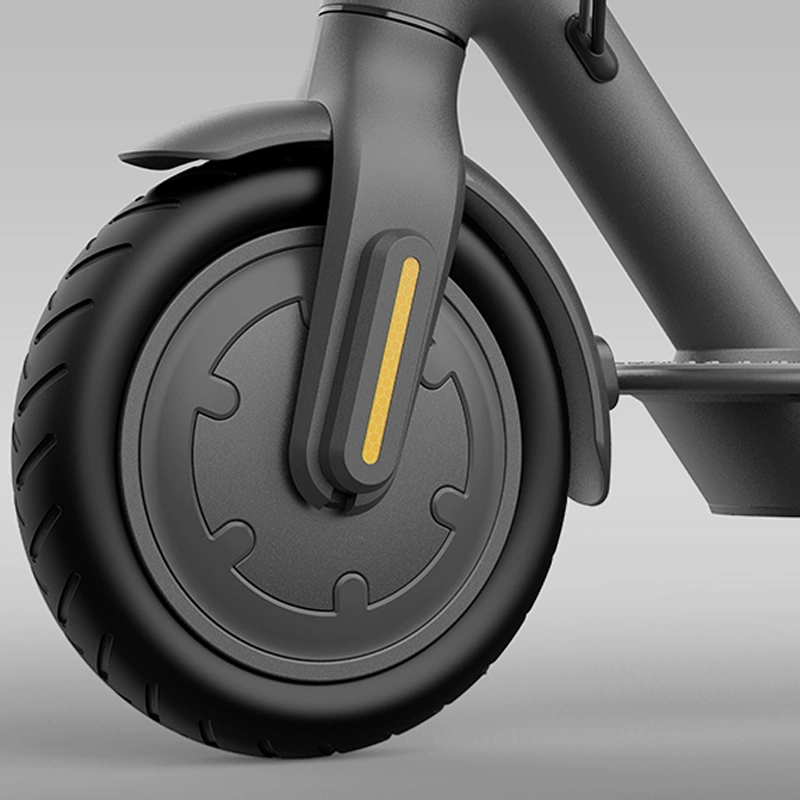

Tires
8.5" front and rear pneumatic tires
Controller undervoltage
protection
29V ± 0.5V
Controller current limit
17A±0.5A
Motor type
Brushless low speed
DC motor
Max.load
100kg
Rider height
120cm-200cm
Rider age
16-50
Working temperature
-10°C to 40°C
Storage temperature
-20°C to 45°C
IP-rating
IP54
Charging time
3.5 hours
Plug type
2 straight prong
Tail type
8-shape
AC wire
H05VVH2-F
AC cable length
2.0m
Input voltage
100-240VAC 50/60Hz
Input current
2A MAX
Output voltage
42VDC
Output current
1.7A
Output power
71W
DC cable length
2m
DC cable port type
Custom Φ8.0*1.6mm
Battery type
Lithium ion battery
Battery model
NE1002-H
Maximum charging voltage
42VDC
Rated voltage
36VDC
Rated capacity
5100mAh /183Wh
Charging temperature range
0°C — 40°C
Discharge temperature
range
-20°C — 50°C
Storage time
Approx. 13 months
Battery weight
1.1kg
Cyclical lifetime
500 charging cycles with
power maintained above 70%
Mi Electric Scooter Essential
Power adapter
Hexagon wrench
Extended nozzle adapter
Screw
User manual
Important information
Specifications
