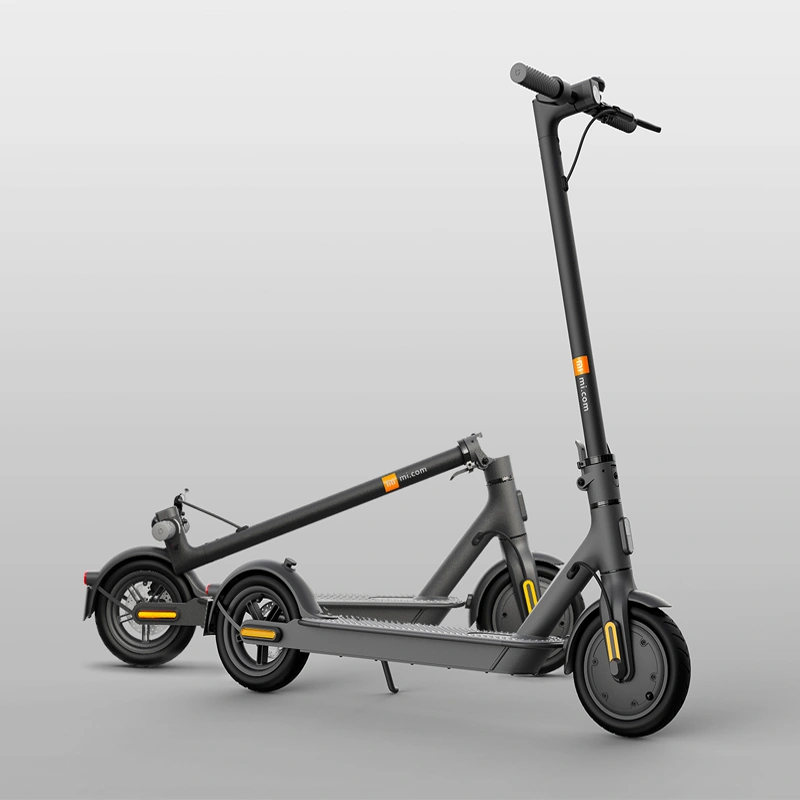

Mi Electric Scooter 1S

Product model number

DDHBC05NEB

Max. speed

25km/h (Max speed for each mode: Pedestrian mode: 5km/h; D: 20km/h; S: 25km/h)

Range

30km

Weight

12.5kg

Gradeability

14%

Braking

E-ABS and disc brake

Rated power

250W

Max. power

500W

Tires

8.5" front and rear
pneumatic tires

Controller undervoltage
protection

29V±0.5V

Controller current limit

17A±0.5A

Motor type

Brushless DC motor

Max. load

100kg

Rider height

120cm-200cm

Rider age

Age 16-50

Working temperature

-10°C to 40°C

Storage temperature

-20°C to 45°C

IP-rating

IP54

Charging time

5.5 hours

Battery type

Lithium ion battery

Battery model

NE1003-H

Rated capacity

7650mAh/275Wh

Rated voltage

36VDC

Maximum charging
voltage

42VDC

Charging temperature
range

0°C~+40°C

Discharge temperature
range

-20°C~+50°C

Battery weight

1.6kg

Cyclical lifetime

500 charging cycles with power
maintained above 70%

Output power

71W

Input current

2A MAX

Output current

1.7A

Input voltage

100-240VAC 50/60Hz

Output voltage

42V

DC cable length

2m

DC cable port type

Custom Φ8.0*1.6mm
